What to Check Before Buying a Used 7G-Tronic Gearbox

If a used 7G-Tronic shifts harshly, smells burnt on the dipstick, or shows ATF wicking up the 13-pin connector, walk away. We've seen too many buyers pay for a "good" gearbox that turns out to need a R45,000 rebuild three months later. The 722.9 is one of the better Mercedes automatics ever built - it just has a handful of well-known weak spots, and they're all visible if you know where to look. This is the same checklist our team in Centurion runs on every 7G-Tronic before it goes out on a quote.

What is the 7G-Tronic?

The 7G-Tronic is Mercedes' 722.9 seven-speed automatic gearbox, in production since 2003 and still fitted to current models. It replaced the 5-speed 722.6 (5G-Tronic) and was joined in 2010 by the updated 7G-Tronic Plus - same casing, lower-viscosity blue ATF and a torque converter with a centrifugal pendulum damper. The two variants do not share fluid, so always confirm which one you're buying.

You'll find the 722.9 paired with most modern Mercedes engines: the OM642 3.0 V6 diesel, the OM651 2.1 four-cylinder diesel, the M272 V6 petrol, the M273 V8 petrol, the M276 V6 petrol and the M278 V8 petrol. Anything Mercedes built between 2004 and roughly 2015 is almost certainly running one.

The 13-pin adapter - check this first

This is the single most common reason a 7G-Tronic seems to be dying when it's actually fine. Inside the gearbox, a 13-pin connector adapter (Mercedes part 2035400253) carries every electrical signal from the conductor plate out to the engine loom. The o-rings on this adapter harden with age and start leaking ATF - and because the leak is on the inside of the connector, the fluid wicks up the wiring loom by capillary action and ends up in the TCM.

The symptoms mimic a failing gearbox almost perfectly: harsh shifts, slipping, limp mode, even a no-communication fault on the diagnostic tool. Buyers panic and replace the entire unit. The fix is a R1,500 adapter and an o-ring kit. To check it, pull the engine loom plug off the side of the gearbox and look at the back of the connector. Wet, oily or ATF residue running up the harness means the seals are gone.

The 7-point inspection checklist

This is what our team runs through on every 722.9 before we put a price on it.

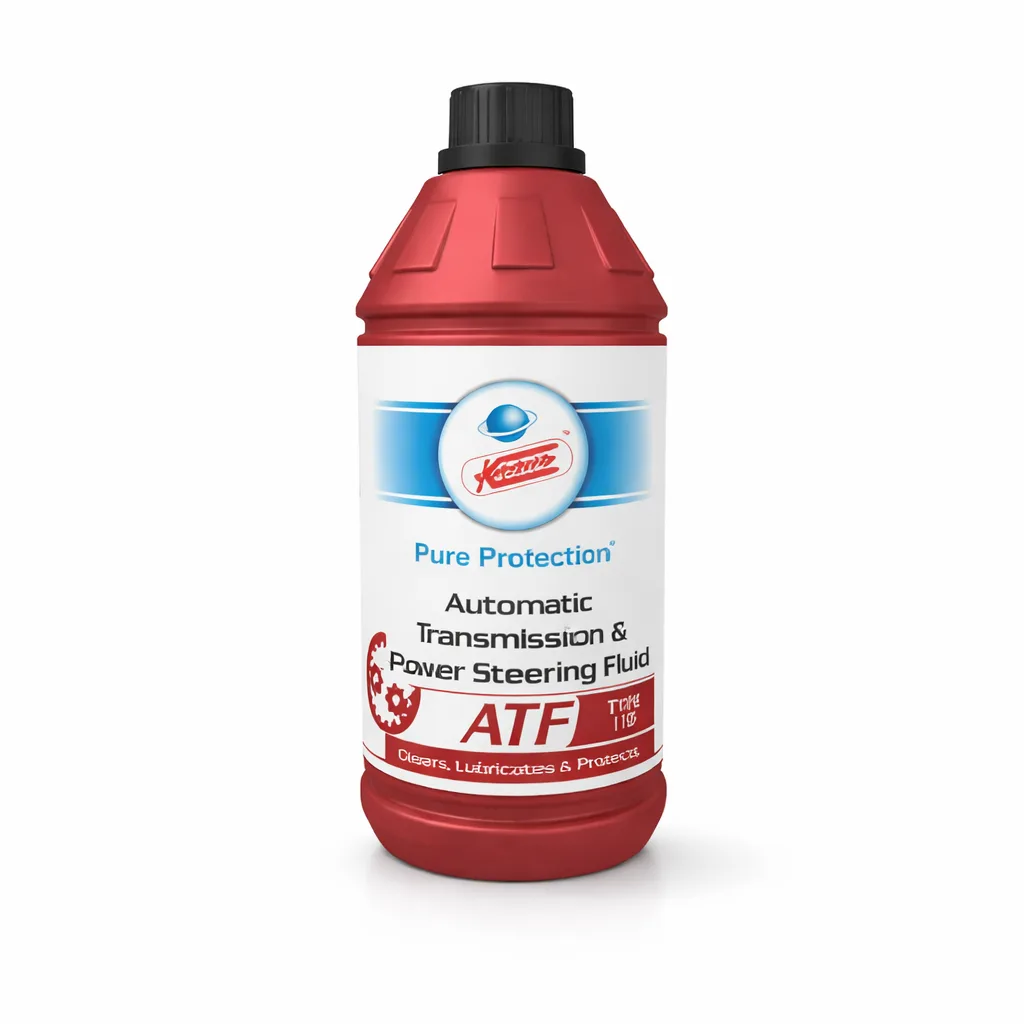

1. ATF colour and smell. Healthy ATF is bright cherry red (722.9) or translucent blue (722.9 Plus) and smells faintly sweet. Brown, dark or burnt-toast smell means the clutches have been cooking. Walk away.
2. ATF level. The 722.9 has no factory dipstick - you check it through the fill plug at operating temp (around 80 degC) with the Mercedes dipstick tool 140 589 15 21 00. On a unit out of the car, drop the pan and check the residual fluid in the sump.
3. 13-pin connector / adapter. As above. This is the one most sellers don't volunteer information about.
4. Conductor plate condition. Drop the pan and look at the conductor plate on the underside of the valve body. Hairline cracks around the speed sensors, blackened solder joints or a corroded surface point to imminent failure. The conductor plate is the single most common internal failure on the 722.9 - stuck in 2nd gear, limp mode, no shift above 60 km/h all trace back here.
5. Mileage and service history. Mercedes marketed the 722.9 as "lifetime fill". Every independent workshop disagrees. ATF and filter every 60,000-80,000 km is the realistic interval; a unit that's done 200,000 km on original fluid is a coin-flip.
6. Pull the fault codes. Plug in a Mercedes-capable diagnostic tool. Codes like P073F (shift solenoids), P0700 (TCM request), P0715 (input speed sensor) and gear-ratio errors P0731-P0736 all point to internal wear. Cleared codes resurface within ten minutes - ask for a fresh scan after a road test.
7. Test drive shift quality. Watch the 1-2 upshift (smooth, not a thump), the 4-5 upshift under light throttle (first to flare on a worn unit), kickdown (crisp, not searching) and manual mode. Any flare, slip or harsh engagement is a red flag.

Need a tested 7G-Tronic with warranty? We stock used and reconditioned units with the 13-pin adapter and conductor plate inspected. Request a quote or WhatsApp us with your VIN.

Used vs reconditioned - what's the difference?

A used gearbox is sold as it came out of the donor vehicle. We test it, check the adapter, scan it for codes and confirm it shifts - but you're buying a part with unknown internal wear, and warranties are typically 30-90 days. A reconditioned unit has been stripped, the conductor plate replaced, the 13-pin adapter and o-rings renewed, the torque converter rebuilt or replaced, all clutches and seals refreshed, and bench-tested. Warranties run 6-12 months.

Rule of thumb: a daily driver with five years left in it is almost always cheaper reconditioned over the lifetime. A car being prepared for sale or with limited remaining value is the case for a tested used unit.

SA pricing - what to expect

Pricing varies sharply by donor model and supply. As a rough guide based on what's moving through SA yards in 2026:

• Used 722.9 (no warranty or 30-day): roughly R12,000-R25,000.
• Used 722.9 (90-day workshop warranty, tested): roughly R18,000-R32,000.
• Reconditioned 722.9 (6-12 month warranty): roughly R28,000-R55,000.
• Mercedes new genuine unit: R90,000+ - rarely the right answer outside of warranty work.

The high end of each band tends to be V8 applications (M273, M278) and AMG variants. Four-cylinder OM651 units sit at the low end. Always confirm pricing includes the torque converter - some yards add R3,000-R6,000 for it at the end.

Pairing - does the gearbox match your engine?

The 722.9 was fitted to dozens of variants - bell housing, loom plug, output shaft length and tail housing differ between them. A 722.9 from a 4Matic E350 will not bolt to a rear-drive C200. Always cross-reference the gearbox part number (stamped on the case) against your VIN. If you're not sure what you have, our guide to reading your chassis code from your VIN walks through the data card.

Buying a used gearbox is one of the bigger spends in any Mercedes' second life. Request a quote with your VIN and we'll come back with a tested unit, inspection notes and a warranty in writing. Ask for the 13-pin adapter check before you transfer money - anyone who doesn't know what that means is selling 7G-Tronic gearboxes blind.
